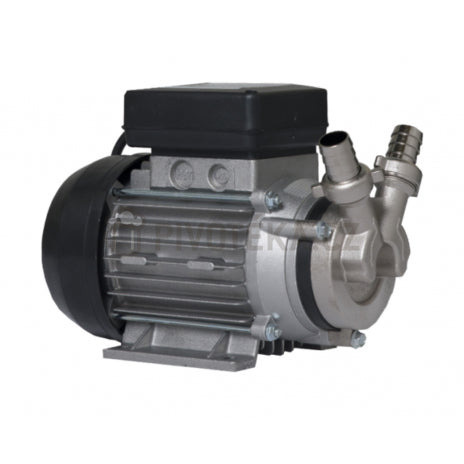

Self-Priming Pump to Transfer Hot Liquids 95C - 240V (Beer Wort or Wine)

Self-priming pump for wine and wort

• Brass self-priming pumps with side inlet and single-phase motor.
• These pumps are an excellent solution for pumping liquids primarily for their considerable self-priming ability, the ability to work even with constant irrigation and reversal of the flow.
• The pump body has a very tight structure to prevent the contact of the liquid with the engine and possible losses.
• EEM pumps are used in the domestic production of wine beer, in agriculture, gardening and households.

Pump specifications:

• Suction height 6m.
• Possibility of reverse.
• Asynchronous single-phase motor, protection IP 44, with reverse switch.
• Continuous operation. The pump comes with one straight and one knee connection.
• input and output 3/4

Liquid specifications:

• Maximum temperature 95°C
• Maximum density 1,1g/cm3 Non-solid particles (e.g. sand)
• Not viscous Do not use for pumping gasoline, solvent, substances that are at risk of explosion.

Materials:

Pump body: Brass CB754S Impeller: Brass CB754S Shaft: Stainless steel AISI 316 Flange (EEM-20): Stainless steel AISI 316 Gasket: NBR rubber rubber gufero with stainless steel spring O-ring between body and NBR rubber cover Flange seal (only for EEM-20)

Power Supply: Standard 230V/50Hz
